imageCLASS LBP6230dw not recognized on Mac Mavericks

Juney
Apprentice

Hello,



First time Canon purchaser. Just got my new ImageClass LBP6230dw wireless laser printer. Connected to my Mac OSX with Mavericks operating system. Downloaded required software from Canon online. After installing everything, all printing works perfectly (recognized in print utility when USB is plugged in... however, when I unplug the USB port, the print utility shows printer now OFFLINE or sometimes it is not even recognized - therefore cannot print anything because it no longer shows.



I want to print wirelessly.

I have everything setup in regards to my wireless setup assistant - all network wifi-address is correct, WPA security is set, etc.



Also, the wifi blue light on the printer remains lit when I unplug the USB so that is okay. But cannot figure why unplugging the USB cable into the computer port is problematic.



Help appreciated.

22 REPLIES 22

Hi AbsorbingLife!

Thanks for posting in the Canon Forums!



The Forum is not intended for immediate help, but a place to allow for the Community to give you assistance and feedback. If are you in the United States and this is an urgent support need, please CLICK HERE to reach our friendly Technical Support Team. If you live outside the United States, please click here and select your country or region for your support needs.

Hello AbsorbingLife,



Since your imageCLASS LBP6230dw was previously printing via wireless communication but can no longer do so, it may be necessary to cycle the power on your router and printer to restore communication.  Please turn off your printer then if there is a power button on your router, press it to turn off the device.  After waiting about one minute, press the power button to turn your router back on.  If there is no power button, please disconnect the power cord for a minute then reconnect the power cord.  Now press the ON button to power the printer back on.  Finally, restart your computer.  Are you able to print now?



If this is a time-sensitive matter, our US-based technical support team is standing by, ready to help 24/7 via Email at http://Canon.us/EmailCF or by phone at 1-800-OK-CANON (1-800-652-2666) weekdays between 8 AM and 8 PM ET (5 AM to 5 PM PT).



Did this answer your question? Please click the Accept as Solution button so that others may find the answer as well.

Alana303
Apprentice

Hello ! I am making this more as a bookmark reminder for myself, as I always forget how to reconnect the printer to my Mac laptop whenever I unplug the machine.

This is in reference to my 2017 Macbook Pro laptop to a Canon LBP6230dw. Whenever I unplug this printer, I have to go through the whole process of adding the printer back to the laptop as the IP address changes, which is quite annoying, because I always forget how I did it the previous time. You can also call Canon Tech Support, they have been successful in helping me get it connected again, although sometimes it takes a bit of time to get here. So I am writing this reply here for myself and others with the same problem, so perhaps they can troubleshoot for themselves.

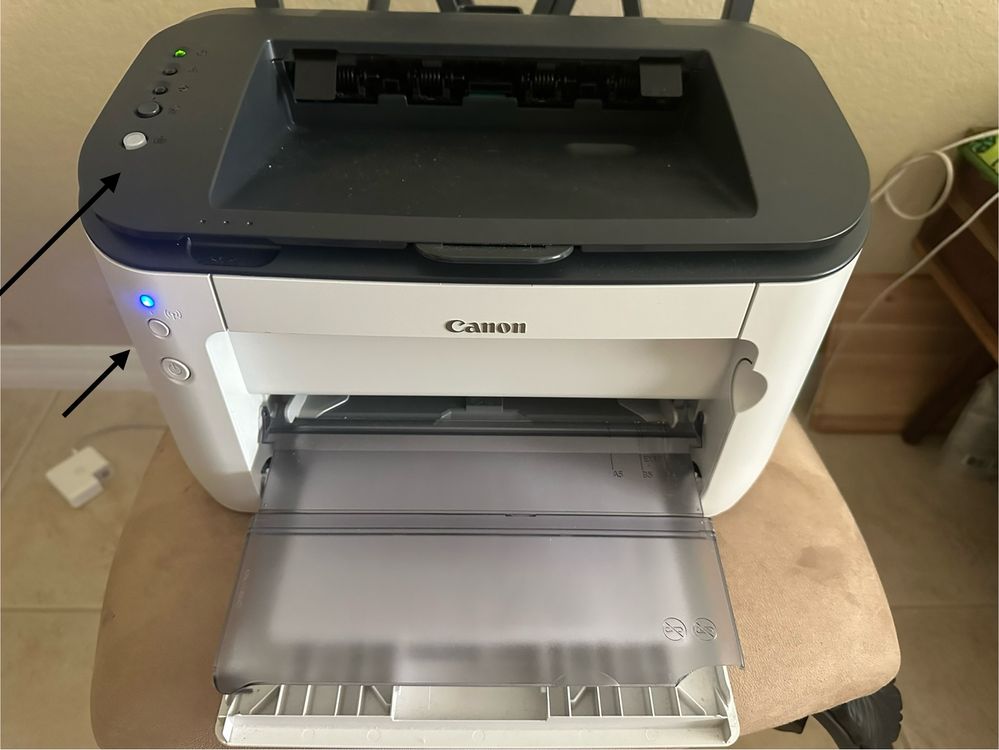

Please refer to the below photo.

The first, longer arrow is pointing to a button that looks like a stack of papers.

The second, shorter arrow is pointing to the button that will help connect to your wifi router in your home/office.

1. After turning your printer back on, push and hold the button that is shown from the shorter arrow, until the blue light is flashing on and off. (This is the button directly under the blue wifi light, which is also above the power button for the printer)

2. Go to your wireless internet router box, and push and hold the "WPS" button that is normally on top of the box. This will also flash a couple of times and then turn off.

3. Go back to your printer, and now push the button shown on the longer arrow, the one with the stack of papers icon. (Sorry I didn't look up the proper names for these buttons). Then, it will print out the User Data List, that will show us what the IP address is for your printer. It may have been the same as before, but it might have needed to just connect to your router again.

At this point, if your IP address was the same as the one listed under your laptop's Printer Settings, then the printer should be back online.

If it has a different IP address listed, then you may need to remove the old printer on the settings and add a new one. I forgot how to do this, and right now my printer did connect back online doing the above steps. If someones with better knowledge can show us the adding back the printer on the settings to the next reply, I would greatly appreciate it! Hope you are all doing great out there, much love.

4. Now go to your laptop settings, and under System Preferences,
