CANON EOS UTILITY 3 FIRST TIME USER

JArmst49
Contributor

I am attempting to calibrate lenses for my EOS 5D Mk lV camera using the "Remote Shooting" function within the Canon EOS Utility 3 program. My laptop has Win 10 and am connected to the camera via USB. The utility starts up fine when the camera is connected and turned on. When I switch to "Live View" and focus on my target I cannot get the "x5" or "x10" (red arrows) zoom functions to work.

I need to add that I am trying to do this work for a friend. I am a novice with both the camera, the Vello Lens Calibration Tool and the Utility program Any help would be greatly appreciated. Also this is my first attempt at lens calibration with the YouTube video's I've seen NOT being very clear.

Thanks ..... John

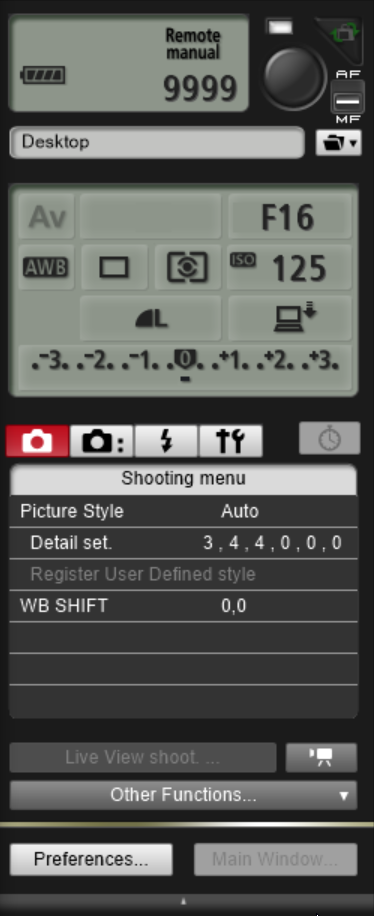

2022-03-19 13_02_45-Remote Live View window.png2022-03-19 13_03_11-EOS 5D Mark IV.png

13 REPLIES 13

I meant Peripheral Image Correction or Digital Lens Optimization settings in the Menu.

John Hoffman
Conway, NH

1D X Mark III, Many lenses, Pixma PRO-100, Pixma TR8620a, LR Classic

You have to be in another focus mode, besides Tracking/Face Detection before you will get the zoom feature in EOSU. Press the "Q" button while in Live View and select "Spot". I think you can use the pull-down and select "FlexZone - Single" in EOSU, but I didn't try that, so I just set it on the camera while I was doing remote shooting with the EOSU.

The images are just for reference so you can see the the difference in the appearance of the focus point/box.

EOSU X5 X10-1.jpgEOSU X5 X10-3.jpg

Newton

EOS R5, R6, R6II. RF 15-35 f/2.8L, 50mm f/1.2L, 85mm f/1.2L, 100mm f/2.8L Macro, 100-400mm, 100-500mm L, 1.4X.

Thanks a lot for all the help. The magnification function works now and the help you suggested did the trick. Much appreciated.     John A

You are welcome, John A.

Newton

EOS R5, R6, R6II. RF 15-35 f/2.8L, 50mm f/1.2L, 85mm f/1.2L, 100mm f/2.8L Macro, 100-400mm, 100-500mm L, 1.4X.
