Canon EOS R no 50fps in FHD (greyed out) with an EFS lens

trotterville2
Apprentice

IMG_3017.JPGIMG_3019.jpgIMG_3022 12mp max.JPGI have an R with an 2.8 Canon EF-S 17-55mm f/2.8 IS USM

the 50fps is greyed out so can not select it

memory card is v30 64gb 95mb so should be fine

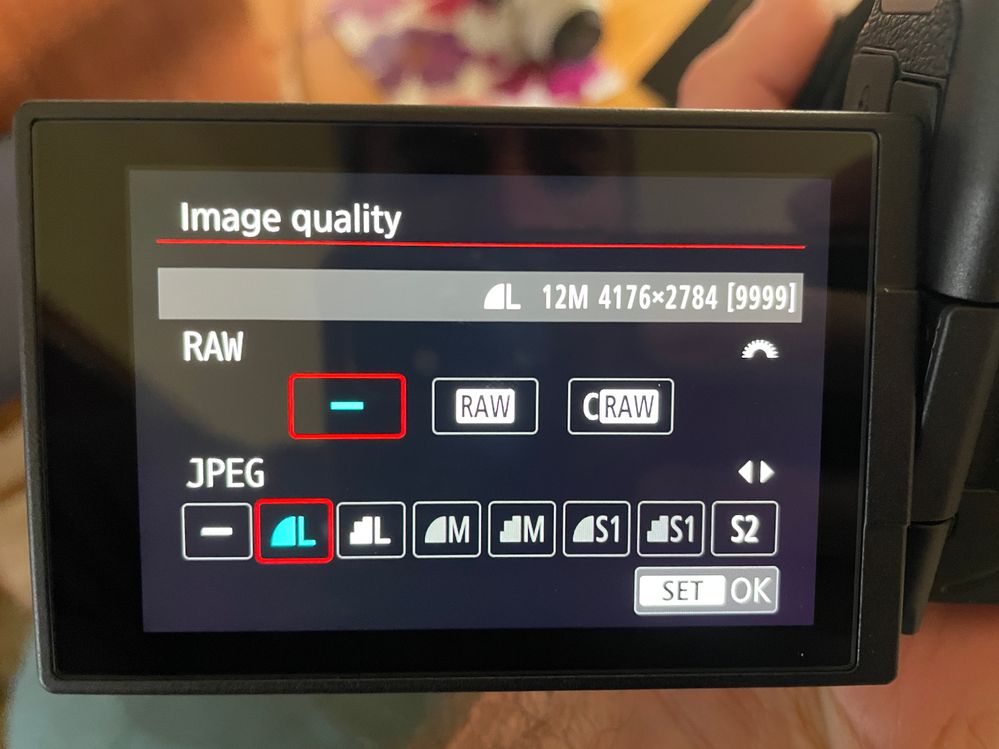

Also is only showing 12Megapixals in photos mode!

Both in M mode

Any ideas?

6 REPLIES 6

jrhoffman75
Legend

Maybe the cropped image size with an EF-S lens is smaller than the cropped image size of the video with a full frame lens.

John Hoffman
Conway, NH

1D X Mark III, Many lenses, Pixma PRO-100, Pixma TR8620a, LR Classic

deebatman316
Mentor

The EOS R series mirrorless cameras have restrictions when using EF-S or the New RF-S lenses. These lenses force the camera to operate in 1.6x crop mode. Due to the image circle being smaller than Full Frame. You will have a loss of megapixels when using APS-C lenses on a Full Frame body. They also don't allow the use of 50 or 60 FPS mode while in movie mode. If you Click here you will find the manual for your camera. Page 219 mentions restrictions on movie about EF-S lenses. Screenshot 2022-09-25 152841.png Screenshot 2022-09-25 153702.png

-Demetrius

40D, 5D IV, EF 16-35mm F/2.8L III, EF 24-70mm F/2.8L II, EF 28-135mm F/3.5-5.6 IS USM, EF 50 F/1.8 STM

430EX III-RT & 600EX II-RT

Bummer, thanks for the info, was waiting for canon to reply for days now, nice to know the community here is so active and helpful. Much appreciated. I’ve now bought a EF 24mm-105mm f4 is

Do you own EF or any 3rd party Full Frame lenses already. Due note 3rd party lenses may have incompatibilities.

-Demetrius

40D, 5D IV, EF 16-35mm F/2.8L III, EF 24-70mm F/2.8L II, EF 28-135mm F/3.5-5.6 IS USM, EF 50 F/1.8 STM

430EX III-RT & 600EX II-RT

Yes I just bought EF 24mm-105mm f4 is L (the first version not the ii)

deebatman316
Mentor

The EF 24-105mm F/4L IS USM lens covers the entire focal length of the your old EF-S 17-55mm F/2.8 IS USM kens. The EF-S 17-55mm F/2.8 IS USM lens is a great lens for APS-C. You'll have better results with the EF 24-105mm F/4L IS USM and will allow you to use the Full Frame sensor to its full potential.

-Demetrius

40D, 5D IV, EF 16-35mm F/2.8L III, EF 24-70mm F/2.8L II, EF 28-135mm F/3.5-5.6 IS USM, EF 50 F/1.8 STM

430EX III-RT & 600EX II-RT
