EOS R3 Green cast in edges of the frame in low light

davidgs
Enthusiast

hello every one,

I have an EOS R3 mirrorless camera, with the 15-35 RF 2.8 and 28-70 RF 2.0, I take pictures of the night sky, it is a low light environment so I set the parameter accordingly, (F2.8, 15 sec, iso6400), when I acquired the camera the recommendation of canon was not to use the profile of the lens, I did make the change and it corrected in 50%.. I replied with that information but I didn't receive more data. couple weeks ago I went to Goblin Valley UT to picture the Milky Way there this is one of the 21 frames I took for a panoramic stich...the green edges and the low resolution in the bottomthe green edges and the low resolution in the bottom



29 REPLIES 29

Left corner, no problem. Right corner looks greenish. Try LENR vs no LENR with same settings and also try to take some dark frames with lens cap on and without LENR. Report back.

Same with your 28-70 RF 2.0?

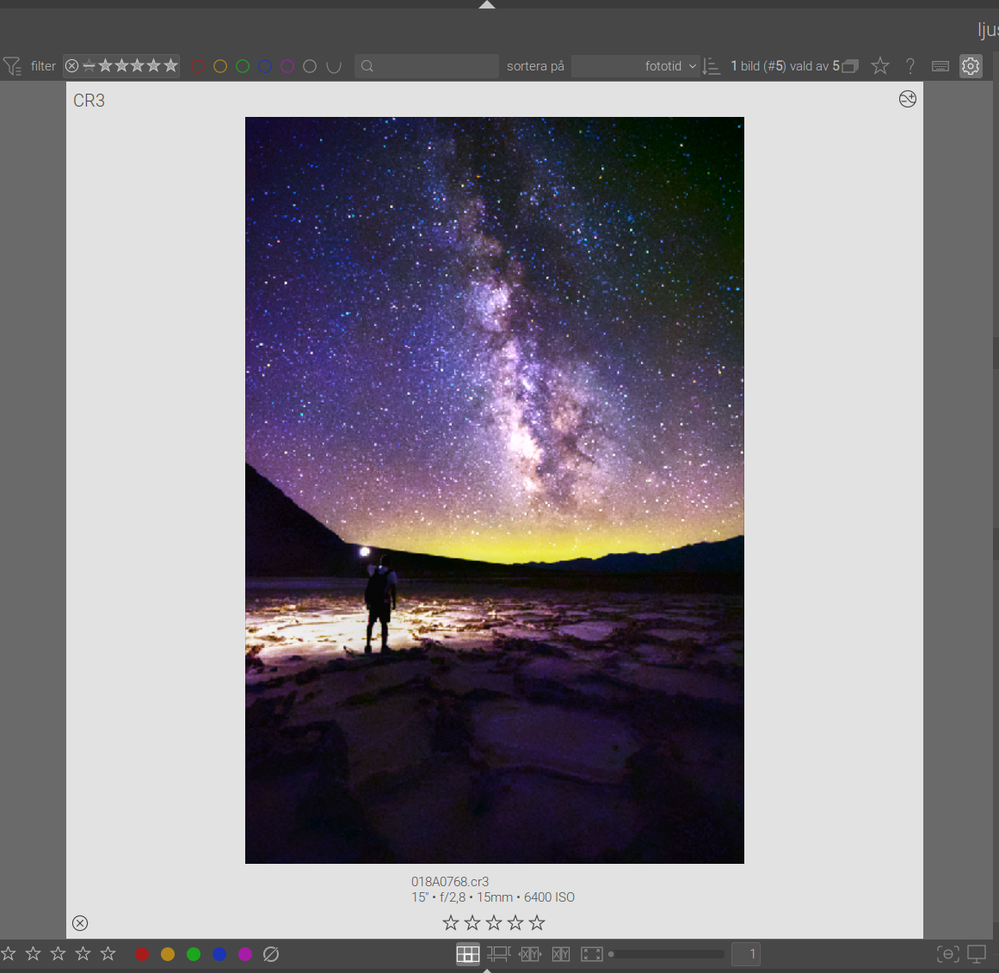

Skärmbild från 2023-06-29 22-43-57.pngSkärmbild från 2023-06-29 22-45-35.png

yes, it happens the same with the 28-70 RF F2.0, I will do the frames you are asking duringnthe weekend.

thank you

Im inserting a link to 4 files that I did at home with your suggestion of same parameters, adding NR and 3 and 4 with the cap on

File XXXX62 same parameters without NR or CAP on

https://drive.google.com/file/d/17VT5xgr6Y_gII0A2SrfK4y37a9jAQQZy/view?usp=share_link

File XXXX63 same parameters with NR no CAP on

https://drive.google.com/file/d/1g8ggKOdqqJL2Huajb459fLNvADhqn528/view?usp=share_link

File XXXX64 same parameters with NR, CAP on

https://drive.google.com/file/d/1joeyQ0ppd3a-H1smfVCdZRQKHyjRW4jJ/view?usp=share_link

File XXXX65 ame parameters without NR, CAP on

https://drive.google.com/file/d/1p3uy-n3bKpo3DmXZQTlpPVFRBoArpRJu/view?usp=share_link





For your two first pictures without lens cap I meant real night pictures of the sky, so try with and without LENR next time you get out there. A bonus is that LENR will clear out those 400 bad pixels but double the exposure time.

It seems you catched a muon in you xxxx63 file.

I increased the brightness by 7,5 EV to make it stand out, but it is visible at 4 EV. Take a look at the thumbnails. LENR (or a dark frame you later use) solves it.

A dark frame should be taken at the same time and temperature, but if I were you I would try to use your XXX65 dark frame together with your astro pictures with 15 seconds exposure and ISO 6400.

Enough said about dark frames and LENR. I have seen a sensor factory calibration with a 550D to reduce fixed pattern noise. I don't know if it is possible to do something similar to R3. You should call Canon and ask. If you find any other R3 owners you can ask if their R3 sensors behave the same.

No LENRNo LENRLENRLENRLENRLENRNo LENRNo LENR

There is a review about R6 and "amp glow" here, but the exposure time was way longer and that looks like what I have been seeing before with older Canon models at very long shutter speeds https://amazingsky.net/2021/09/23/testing-the-canon-r6-for-astrophotography/

johnrmoyer
Whiz
Whiz

I hope some of this might help. I use hugin on Linux for stitching, so it might be different for you.

Are they raw files? Have you tried changing the white balance in the Canon DPP software and exporting 16 bit tiff files for stitching?



Peter
Authority
Authority

Any raw files?

shadowsports
Legend
Legend

I'm in agreement about a white balance and possibly a unintended picture styles modification.

+1, @davidgs, how about some RAW photos for us to digest. please.



~Rick
Bay Area - CA


~R5 C (1.0.9.1) ~RF Trinity, ~RF 100 Macro, ~RF 100~400, ~RF 100~500, ~RF 200-800 +RF 1.4x TC, BG-R10, 430EX III-RT ~DxO PhotoLab Elite ~DaVinci Resolve Studio ~ImageClass MF644Cdw/MF656Cdw ~Pixel 8 ~CarePaks Are Worth It

Yes I will upload a file later today
