New MB5120 Auto document feeder [adf] duplex pdf output half black.



Hello all,

I have recently purchased a Canon MB5120 for my small business and for the most part this printer has worked quite well besides the ADF scanning feature.


When I attempt to scan from the ‘Canon IJ Scan Utility’ using the PDF Document button and selecting what I believe are the appropriate settings, the backside pages/even pages are consistently being scanned halfway.


 I am unsure what to do, please take a look at the provided images. I have searched through this forum and online but haven’t been able to find a solution. The scanner works, but it has to be manually fed [turn 180 degrees and fed back into the ADF] which is a bit time consuming.


What am I doing wrong here? I plan on calling customer support but being in Asia I would have to wait during the weekday, preferring to speak to an English customer rep that is.


Once again, I simply wish for the ADF to scan in duplex and output via PDF without the need of feeding it again manually.


This is what a sample PDF preview looks like

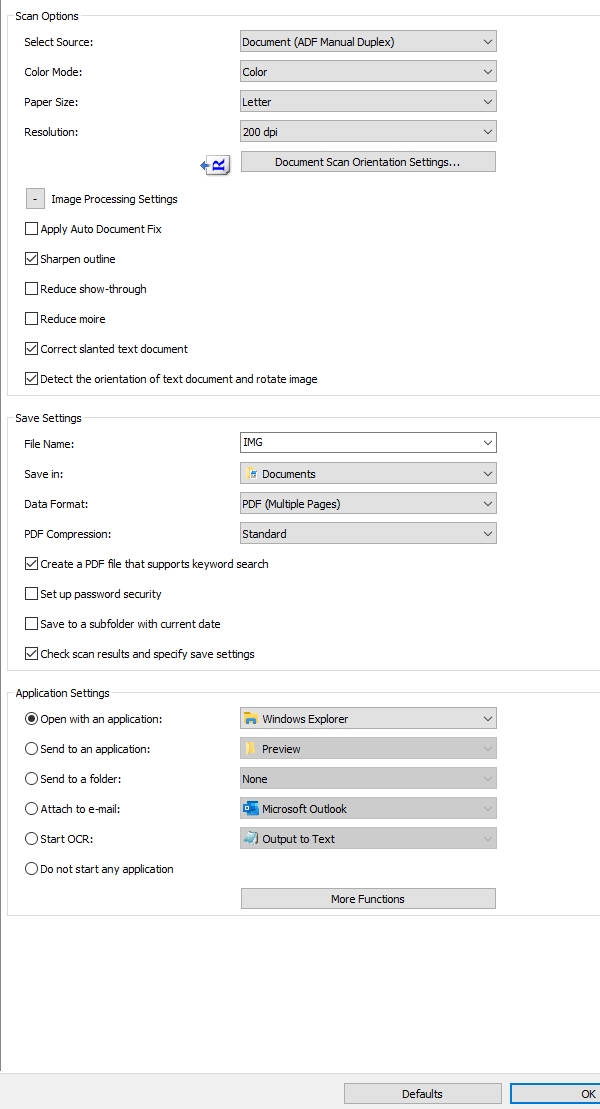

These are my settings under 'Document Scan,' in which, I have it currently set to 'ADF Manual Duplex' since if I were to choose 'Document (ADF Duplex) it produces the above result.

Capture 2.PNG


Product Expert
Product Expert

Hi rishieee,


Please contact one of Canon's Technical Support Representatives via phone or chat. To contact a Technical Support Representative, please use the link below:




Did this answer your question? Please click the Accept as Solution button so that others may find the answer as well.
