Mark III 5D

KamdynFuller
Contributor

My shutter will not open when I try to look through my Viewfinder. Please help! I can take pictures through the screen but when I switch back to the view finder, it is black.

16 REPLIES 16

Tronhard
VIP
VIP

The likely cause is that the mirror is locked up, so it is blocking the pentaprism from displaying the image to the viewfinder, on the other hand the sensor is able to have an unobstructed view.

What lenses were you using when this happened?


cheers, TREVOR

The mark of good photographer is less what they hold in their hand, it's more what they hold in their head;
"All the variety, all the charm, all the beauty of life is made up of light and shadow", Leo Tolstoy;
"Skill in photography is acquired by practice and not by purchase" Percy W. Harris

I was using the Canon EF 16-35 MM f/4L IS USM Ultra-Wide Zoom Lens

jrhoffman75
Legend
Legend

Check that you haven't inadvertently actuated LiveView.

Screenshot 2022-06-01 153650.jpg

John Hoffman
Conway, NH

1D X Mark III, M200, Many lenses, Pixma PRO-100, Pixma TR8620a, Lr Classic

It's in Live View Shooting, not Recording.

Switch it out of LiveView and you will get your optical viewfinder back. It’s an either/or.

John Hoffman
Conway, NH

1D X Mark III, M200, Many lenses, Pixma PRO-100, Pixma TR8620a, Lr Classic

It sounds like the shutter opens when I switch from live view, but viewfinder is still black unfortunately.

A good point.  I took the comment to mean about switching back to viewfinder to mean that they had actually knowingly activated the switch.

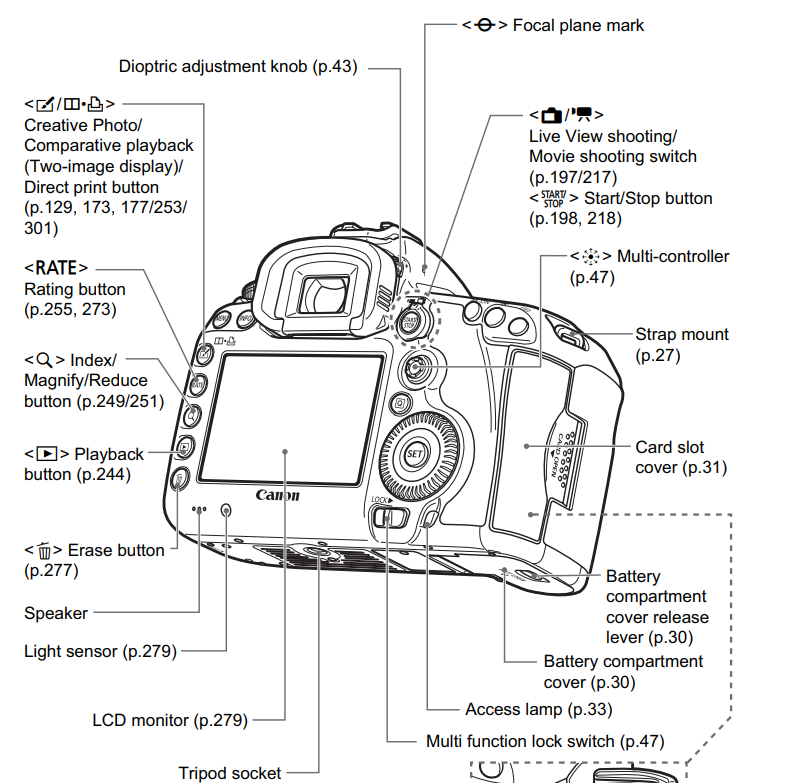

KAMDYN: please check the diagram on P20 of your manual, shown below: it identifies a button, just to the right of the viewfinder labelled Live View Shooting Switch.  That switches between live view using the LCD at the back, and the optical viewfinder.  Try checking that is not rotated, and if so rotate it back to vertical.
5dIII back.png  It identifies a button


cheers, TREVOR

The mark of good photographer is less what they hold in their hand, it's more what they hold in their head;
"All the variety, all the charm, all the beauty of life is made up of light and shadow", Leo Tolstoy;
"Skill in photography is acquired by practice and not by purchase" Percy W. Harris

In that case either mirror lockup is inadvertently set or your camera has a mechanical problem.

Go into the menu an reset all camera settings. See page 56 of your manual.

Wrench (yellow) menu page 4

John Hoffman
Conway, NH

1D X Mark III, M200, Many lenses, Pixma PRO-100, Pixma TR8620a, Lr Classic

I have already done that. I'm assuming it's a mechanical issue as well. Thanks for trying to help!
